Data connectors & domain components

The data layer starts with a connector — a scoped, read-only external data source — and is consumed through domain components: named, parameterized queries that humans author and the platform governs. Together they are the only path from a question to an external system. Connectors come in three kinds — postgres, mysql, and snowflake — behind one adapter contract, so governance, provenance, and citations are identical regardless of engine. Concepts first: Semantic ↔ data layer.

Connectors

A connector separates what is secret from what is not:

Test connection. Each connector has a test action that opens a connection, runs a trivial probe, and stamps lastCheckedAt / lastStatus — so the Data page shows at a glance which sources are healthy before an agent ever depends on them.

Engines

Each kind maps to one engine adapter — the only code that touches a driver SDK. Adapters share one interface (test connection, discover schema, execute under caps), so everything downstream of the connector is engine-agnostic. What differs per engine is the non-secret config shape and how read-only is enforced at the session level.

Read-only enforcement differs by engine — know your floor. Every execution on every engine passes the shared statement gate first: single-statement SELECT/WITH only, validated at save time and again at execution time. On top of that:

• Postgres and MySQL additionally set the session read-only mode on every short-lived connection before the statement runs — a second, engine-level wall: even a statement that slipped the gate could not write.
• Snowflakehas no session read-only mode, so enforcement there is the statement gate plus your role grants. This is exactly the case where the "read-only role" recommendation stops being defense in depth and becomes the second wall itself — grant the connector role SELECT only.

One template dialect. Domain component templates are always written with positional $1..$nplaceholders, whatever the engine. The adapter rewrites them to the driver's native style ($n for Postgres, ? binds for MySQL and Snowflake) with a pure, unit-tested rewriter — values always travel as bound parameters, never interpolated into SQL text.

Schema discovery

Authoring a good query requires knowing what is there. Each connector has a discoveraction that reads the engine's information_schema (through the same read-only, capped execution path) and stores a schema snapshot on the connector: every visible table with its schema, columns (name, engine-native type, nullability), and a cheap row-count estimate where the engine offers one. The snapshot is stamped discoveredAt, so you always know how fresh your view of the source is — re-run discovery any time the upstream schema changes.

{
  "engine": "mysql",
  "database": "northwind_mysql",
  "discoveredAt": "2026-07-19T14:02:11.000Z",
  "tables": [
    {
      "schema": "northwind_mysql",
      "name": "shipments",
      "rowEstimate": 120,
      "columns": [
        { "name": "id", "dataType": "bigint", "nullable": false },
        { "name": "order_ref", "dataType": "varchar(32)", "nullable": false },
        { "name": "carrier", "dataType": "varchar(64)", "nullable": true },
        { "name": "status", "dataType": "enum('pending','in_transit','delivered','lost')", "nullable": false },
        { "name": "cost_usd", "dataType": "decimal(10,2)", "nullable": true },
        { "name": "shipped_at", "dataType": "datetime", "nullable": true }
      ]
    }
  ]
}

The snapshot powers three things: the schema browser on the Data page, snapshot-validated table previews, and the context handed to LLM query generation — all below.

Safe table previews

From the schema browser you can preview any discovered table — a bounded SELECTof its first rows. Previews never build SQL from free text: the table and column identifiers must exist in the stored snapshot, are quoted with the engine's own identifier quoting, and everything else about the statement is fixed. A table name that is not in the snapshot is refused, which closes the identifier-injection path entirely. Previews run under the connector's maxRows and timeoutMs and write a data_calls provenance row like any other execution.

Domain components (named queries)

A domain component is a governed query: a human writes the SQL once, declares its parameters, and describes it for the model. Consumers — the kb_data tool, the structured query API, MCP clients — supply validated parameters only.

{
  "slug": "customer-churn-risk",
  "title": "Customer churn risk",
  "description": "Segment, region, annual value, and churn risk for a customer by name. Use when asked about a specific customer's health or renewal risk.",
  "sqlTemplate": "SELECT name, segment, region, annual_value_usd, churn_risk FROM customers WHERE name ILIKE '%' || $1 || '%' LIMIT 5",
  "params": [
    { "name": "customer_name", "type": "string", "required": true, "description": "Customer display name (partial match)" }
  ]
}

Save-time SQL validation. A component that is not a single SELECT/WITH statement is rejected when you save it — not discovered at 2am when an agent calls it. The same check re-runs at execution time (not-read-only), so a template can never drift into a write.

LLM query generation

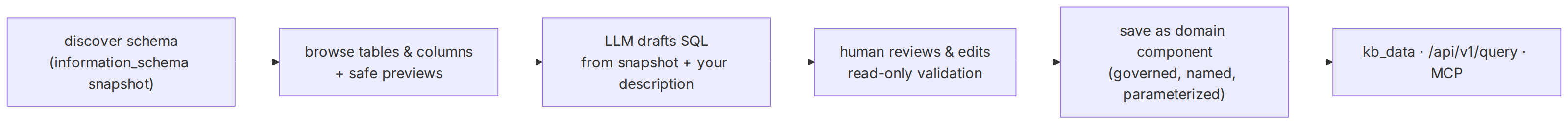

Writing a component by hand requires knowing SQL and the source schema. Generation removes the first requirement without loosening any rule: describe what you want in plain language, and the model drafts the SQL from the connector's schema snapshot — real tables, real columns, real types, not guesses. The draft lands in the same editor a hand-written component uses, for a human to review, edit, test-run, and only then save.

Once saved, a generated component is indistinguishable from a hand-written one: it is discoverable by kb_data, callable through POST /api/v1/query and the MCP server, and bindable to entities.

Governance at execution

Every execution — from any surface, on any engine — passes the same gauntlet:

1. Connector and component must exist and be enabled.
2. Params are validated against the DataParamSpec list — types coerced, required params present, defaults applied (invalid-params otherwise).
3. Single-statement SELECT/WITH re-verified (not-read-only).
4. Credentials decrypt, a short-lived connection opens (session read-only on Postgres/MySQL), the adapter rewrites $nplaceholders to the driver's bind style, the statement runs under timeoutMs, and results cap at maxRows with a truncated flag. Rows come back strictly JSON-safe — dates and engine-native types are normalized (e.g. Date → ISO string) identically on every engine.
5. A data_calls provenance row is appended — on success and on failure (ok · error · timeout · blocked) — recording the exact SQL, params used, row count, duration, and executor.

The Data page

Everything above is managed in the workspace Data page (/w/:workspaceId/data):

• Connectors — the create/edit dialog opens with an Engineselector (PostgreSQL · MySQL · Snowflake) that switches the config form to that engine's fields and default port; the engine is fixed once the connector is created. Secrets are entered once and masked thereafter; enable/disable, test connection with live status, and the governance caps live in the same dialog.
• Schema browser — the discovered snapshot per connector: tables, columns, types, row estimates, the discoveredAt stamp, a refresh action, and snapshot-validated previews.
• Domain components — author the SQL template and param specs with save-time validation (or start from an LLM draft), and preview-run a component with sample params to see real rows before exposing it.
• Call history — the recent data_calls provenance trail: status, duration, row count, and which run/conversation triggered each call.

Mutations are owner/admin-gated; all of it is workspace-scoped under FORCE-RLS like every other tenant surface.
