Semantic caching

Two people ask "what's our refund window?" an hour apart. The pipeline retrieves the same chunks, spends the same generation tokens, and produces the same grounded answer twice. A semantic cache serves the second one from a store — but naïvely, a cache is a correctness hazard: it can serve a stale answer after the source changed, or leak one tenant's answer to another. The design here treats the cache as an opt-in optimization that must be invisible until proven safe: it defaults off, has a shadow mode that measures hit rate without ever serving, tracks exactly which documents each answer depends on, and re-checks readability at serve time.

A cache HIT in shadow is never served — same discipline as policy shadow

cache.mode has three values. off bypasses the cache entirely (zero overhead — not even a lookup). shadow computes hit/miss and logs it but always runs the real pipeline and serves the fresh answer — so hit rate is measurable while behavior is byte-identical to off. enforce is the only mode that serves from cache. This mirrors the answer-policy shadow invariant: you measure the change before you let it touch a single answer.

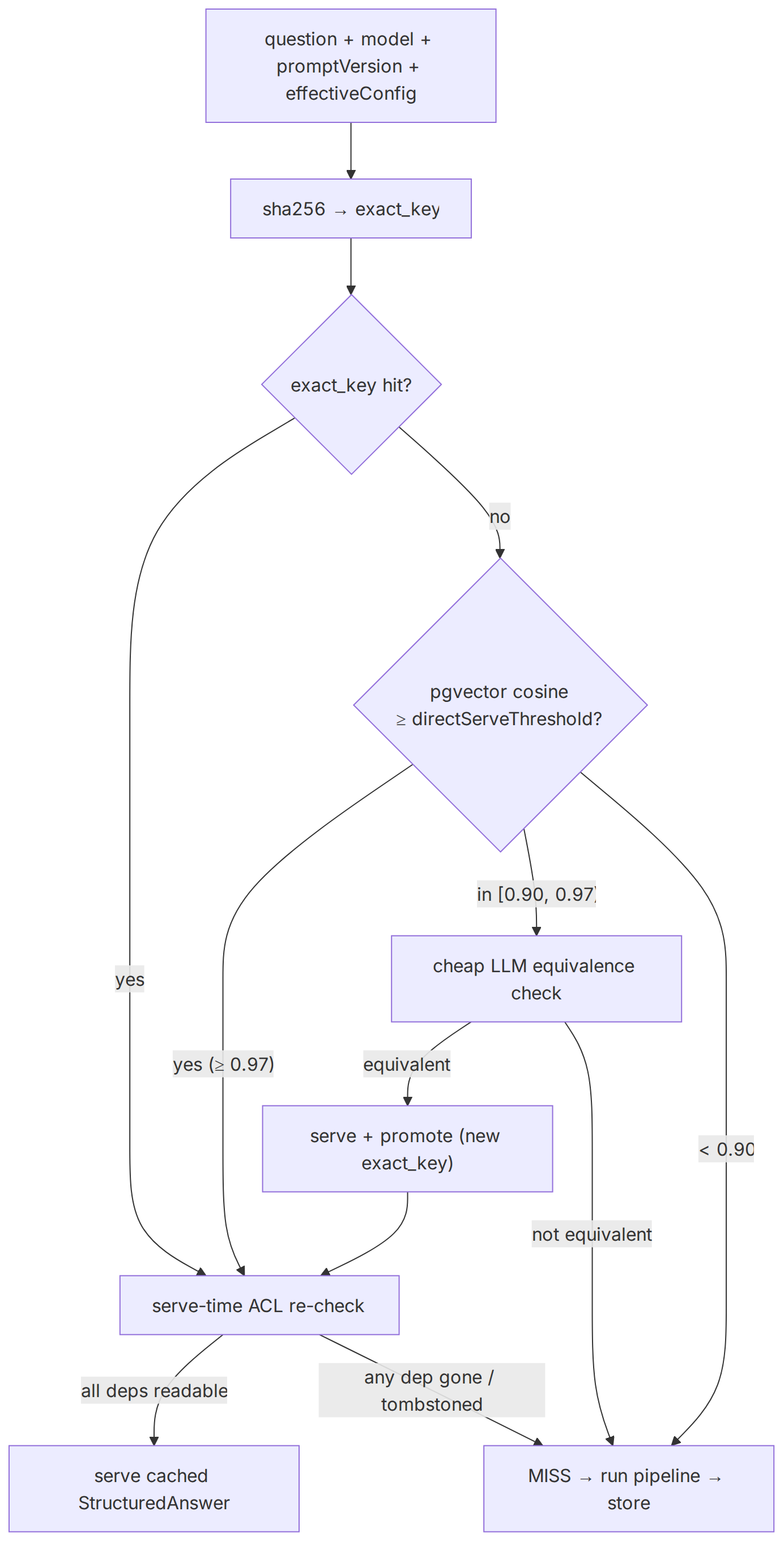

The tiered lookup

Lookup is cheapest-tier-first. Only the grounded-answer path is cached — structured query and the chat final answer — never agent intermediate steps, where a stale tool result would be dangerous.

Exact-key first (free), then pgvector cosine, then a paid LLM equivalence check in the uncertainty band. Every path that would serve passes a serve-time ACL re-check first; a failed re-check is a miss, never a leak.

Exact tier — exact_key = sha256(normalized question | model | promptVersion | effectiveConfig). A hit is a byte-for-byte identical request; no embedding needed. This tier works even when embeddings are unconfigured (the embedding column is nullable), so the cache degrades to exact-match-only rather than failing.
Semantic direct-serve — a pgvector cosine search over stored question embeddings. A neighbor at similarity ≥ directServeThreshold (default 0.97) is served directly: at that distance the questions are effectively the same.
LLM equivalence tier — in the band [judgeVerifyThreshold, directServeThreshold) (default [0.90, 0.97)) the questions are close but not obviously identical. One cheap judge-slot call decides semantic equivalence; if it says yes, the answer is served and promoted (a new exact-key row is written so the next identical hit skips the judge). Below judgeVerifyThreshold it is a plain miss.

Why a similarity threshold alone is not enough

The uncertainty band is the crux. "How do I cancel my plan?" and "How do I upgrade my plan?" can embed close, but they must not share an answer. A raw cosine cache serves the wrong one; the equivalence tier is the guard that a pure vector store lacks. The two thresholds let a workspace tune the speed/safety trade-off: raise directServeThreshold toward 1.0 to trust only near-identical questions, or lower judgeVerifyThreshold to let the judge adjudicate more of the long tail.

Native pgvector, not a bolt-on store

The embedding is a fixed vector(1536) column on semantic_cache_entries with an HNSW index under vector_cosine_ops — the same Postgres + pgvector the knowledge base already runs on. There is no second datastore to operate, back up, or keep tenant-isolated: the cache lives under the same FORCE-RLS tenancy as every other tenant table, so a cross-tenant read is impossible at the database layer, not just in application code. When embeddings are not configured, the column is null and only the exact tier runs — the cache never hard-depends on an embedding provider.

Dependency-tracked invalidation

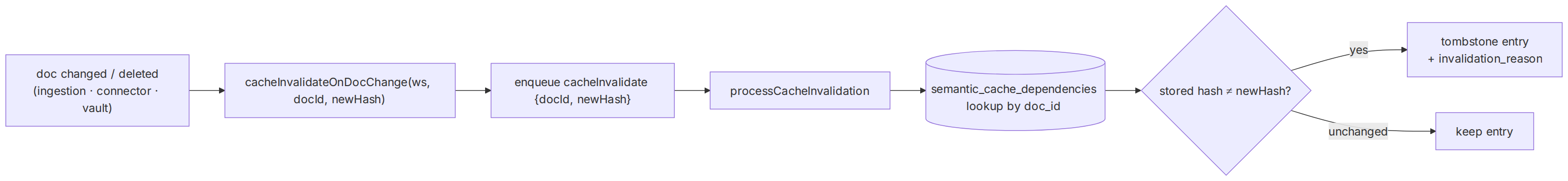

A cached answer is only valid while the documents that grounded it are unchanged. On write, the cache records a semantic_cache_dependencies row per [Sn] source in the answer — the doc_id and the document's content_hash at the moment it was cached. When any document changes or is deleted — from vault edits, the API, or a connector sync — ingestion calls cacheInvalidateOnDocChange(workspaceId, docId, newHash), which enqueues a cacheInvalidate job:

Any document write funnels through one hook. The worker looks up dependent entries by doc_id and tombstones those whose stored content hash no longer matches — stamping an invalidation_reason. Entries are never silently deleted; the reason is auditable.

Invalidation compares hashes, not timestamps: an edit that does not change a document's content (a re-sync that yields the same bytes) leaves dependent cache entries intact, so a connector polling every few minutes does not needlessly cold-start the cache. Tombstoning appends an invalidation_reason rather than hard-deleting, keeping the record of why an answer stopped being served.

Serve-time safety

Invalidation is eventual (it rides a queue), so it is a best-effort freshness signal, not the security boundary. The boundary is enforced at serve time, every time:

Tenant scoping — the entry, its embedding search, and its dependencies are all read under FORCE-RLS. A cache row from another workspace is not visible, full stop.
ACL re-check — before serving, every dependency document must be currently readable in the workspace. A document that was deleted, tombstoned, or moved out of visibility since the answer was cached turns the hit into a miss — the pipeline re-runs and the answer reflects what the asker can actually see. A cache never widens access.
Model & prompt in the key — embedding_model is part of the uniqueness key and the model id + prompt version are part of the exact key, so a model swap or prompt change starts a fresh cache generation rather than serving answers a different model produced.
Per-answer TTL — ttlHours (default 168, one week) bounds staleness even for a document that never triggered an invalidation, catching drift that lives outside any single document's hash.

Why the re-check is not optional

Published work on cache-based attacks against LLM semantic caches("CacheAttack"-class results) shows two live risks: a timing side channel that leaks whether a similar question was asked before, and cache poisoning that plants an answer for a later victim query. Tenant RLS closes cross-workspace leakage; the serve-time ACL re-check closes intra-workspace privilege escalation (a cached answer grounded in a doc the current asker may no longer read); and equivalence-tier promotion is scoped to the asking workspace so no entry an outsider planted can be served. Correctness and security both flow from re-verifying at serve time rather than trusting the store.

What is stored

An entry holds the full StructuredAnswer minus usage — replayable verbatim, including its claims and [Sn] sources — plus the bookkeeping the tiers and invalidation need:

a semantic_cache_entries row (abridged)json

{
  "exactKey": "b1946ac9…",            // sha256(question | model | promptVersion | effectiveConfig)
  "question": "what is our refund window?",
  "embedding": "[0.013, -0.041, …]",  // vector(1536), or null when embeddings unconfigured
  "embeddingModel": "text-embedding-3-small",
  "answer": { "answer": "…", "claims": [ … ], "sources": [ { "id": "S1", "docId": "01KY…" } ] },
  "modelId": "claude-sonnet-4-5",
  "promptVersion": "structured-v3",
  "hitCount": 7,
  "lastHitAt": "2026-07-21T09:14:05.001Z",
  "expiresAt": "2026-07-28T09:00:00.000Z",
  "invalidatedAt": null,
  "invalidationReason": null
}

hit_count and last_hit_at are the only fields updated in place; everything else is write-once, and invalidation appends a reason rather than mutating the answer. Hit rate, entry counts, and invalidation totals surface in GET /api/v1/cache/stats and the workspace cache tile.

Research grounding

Mechanism	Where it lives	Research grounding
Tiered exact + semantic lookup	cache/semantic-cache.ts	GPTCache (Zilliz, MIT) pioneered LLM semantic caching; its development is largely frozen, so the design pattern is borrowed and reimplemented natively rather than depended on.
Native pgvector HNSW cosine	semantic_cache_entries.embedding	pgvector HNSW vector_cosine_ops — reuse the KB's own vector store; no separate cache datastore to isolate or operate.
LLM equivalence tier in the uncertainty band	cache/semantic-cache.ts (judge slot)	Similarity alone conflates near-but-distinct questions (cancel vs. upgrade); a verification step is the known fix for semantic-cache false hits.
Serve-time ACL re-check + tenant RLS	answerStructured integration	CacheAttack-class results on LLM semantic caches — timing side channels and cache poisoning; re-verify readability at serve time, never trust the store.
Dependency-hash invalidation (append reason)	semantic_cache_dependencies + processCacheInvalidation	Cache-invalidation-on-source-change; hash comparison (not timestamps) avoids needless cold-starts under frequent connector polling.
off / shadow / enforce	cache settings bag	Same shadow discipline as the answer policy — measure hit rate with zero behavior change before serving a single answer.

Turn it on safely

Start in shadow, watch the hit rate in GET /api/v1/cache/stats for a week, confirm invalidations track your document churn, then flip to enforce. The settings bag lives in workspace settings; the answer shape it replays is structured query.
